Yato - Service Tool Cabinet with Tools 177pcs - YT-55300

SKU
YT-55300
Be the first to review this product
In stock
₹ 81,115.00 (Inc. GST)
Add to Wish List Add to Compare
Overview

Description

177pcs; 12 trays; 6 drawers w/ ball bearings (3 small, 3 large); non- slip polypropylene worktop; centralised lock; dimensions 975x765x465mm; max. top load: 300kg; max. capacity: small drawer - 25kg, large drawer - 35kg; drawers locking; double walls; corner bumpers; 4 pvc wheels 125 mm: 2 fixed, 2 castors (2 w/ brake), universal perforation side wall, two keys included, tool inserts: yt-5531~yt-5542, total 177pcs tools in 12trays in 4 drawers.







Description

 177pcs; 12 trays; 6 drawers w/ ball bearings (3 small, 3 large); non- slip polypropylene worktop; centralised lock; dimensions 975x765x465mm; max. top load: 300kg; max. capacity: small drawer - 25kg, large drawer - 35kg; drawers locking; double walls; corner bumpers; 4 pvc wheels 125 mm: 2 fixed, 2 castors (2 w/ brake), universal perforation side wall, two keys included, tool inserts: yt-5531~yt-5542, total 177pcs tools in 12trays in 4 drawers



Includes:

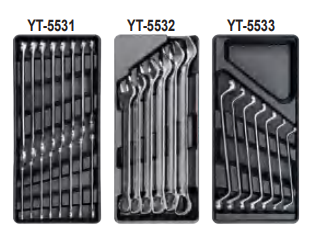

1St Drawer (YT-5531, YT-5532, YT-5533)

Drawer 1
YT-5531 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21 mm; CrV;
YT-5532 22, 24, 27, 28, 30, 32 mm; CrV;
YT-5533 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19 mm; CrV





2nd Drawer (YT-5534, YT-5535, YT-5536)

Drawer 2
YT-5534 180 mm; 160 mm; 60 mm long nose, 160 mm bent nose
YT-5535 3x75, 5x100, 5x150, 6x38, 6x100, 6x150, 8x150 mm; CrMo;
YT-5536 PH0x100, PH1x75, PH1x100, PH2x38, PH2x100, PH2x150, PH3x150 mm; CrMo;





3rd Drawer ( YT-5537, YT-5538, YT-5539)

Drawer 3
YT-5537 1/2” (12.7 mm): 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 27, 30, 32 mm; CrV 50BV30;
1/2” (12.7 mm); (127 mm); CrV 50BV30;
1/2” (12.7 mm); CrV 50BV30;
1/2” (12.7 mm): 16, 21 mm; CrV 50BV30
1/2” (12.7 mm); (255 mm); CrV 50BV30
1/2” (12.7 mm); (255 mm); 72T; CrV 6140;
YT-5539 T20, T25, T30, T40, T45, T50, T55 (L=30 mm);
T20, T25, T30, T40, T45, T50, T55 (L=75 mm); AISI S2;
YT-5538 4, 5, 6, 7, 8, 10, 12 mm (L=30 mm); 4, 5, 6, 7, 8, 10, 12 mm (L=75 mm); AISI S2;
M5, M6, M8, M10, M12 (L=30 mm); M5, M6, M8, M10, M12 (L=75 mm); AISI S2;
1/2” (12.7 mm), 3/8” (9.5 mm);
1/2” (12.7 mm): 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21 mm (L=76 mm); CrV 50BV30

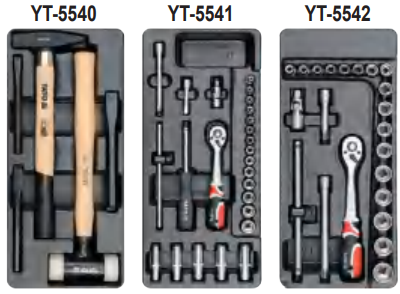

4th Drawer (YT-5540, YT-5541, YT-5542)

Drawer 4
YT-5540 10x8x142 mm, 12x10x152 mm, 16x13x172 mm;
300 g (L=300 mm)
40 mm (L=350 mm)
YT-5541 1/4” (6.3 mm): 3.5, 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14 mm; CrV 50BV30
1/4” (6.3 mm): 8, 10, 11, 12, 13 mm; CrV 50BV30
1/4” (6.3 mm); (50.8, 101.6 mm); CrV 6140
1/4” (6.3 mm); CrV 50BV30
1/4” (6.3 mm); (152.4 mm); CrV 50BV30
1/4” (6.3 mm); (155 mm); 72T; CrV 6140
1/4” (6.3 mm); (150 mm); CrV 50BV30
YT-5542 3/8” (9.5 mm): 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22 mm; CrV 50BV30
3/8” (9.5 mm); (76, 152.4 mm); CrV 50BV30
3/8” (9.5 mm); CrV 50BV30
3/8” (9.5 mm); (198 mm); CrV 50BV30
3/8” (9.5 mm); (200 mm); 72T; CrV 6140
