Toolstar - Universal Stripper - TS-S501A

UNIVERSAL STRIPPING TOOL

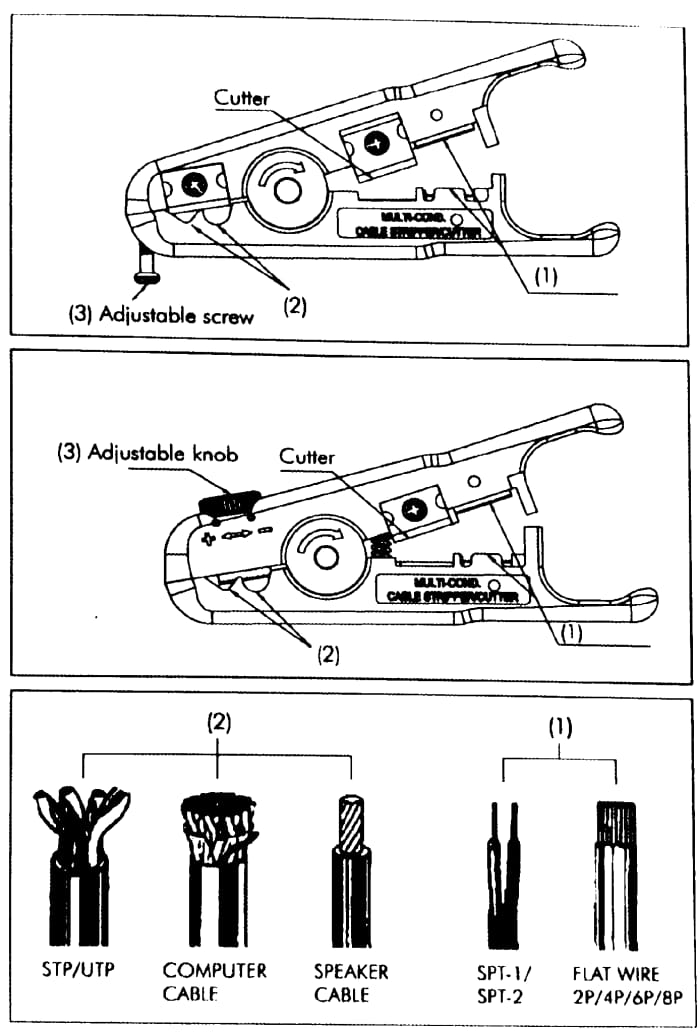

Instructions:

• Flat Wire Stripper: by inserting cables between the stripper blades, squeeze handles, cable must be keep perpendicular and then pull from the tool. Available for following cables:
• Stranded phone wire 2P, 4P, 6P, BP, 10P, etc.
• Intercom/Alarm wire/2-Cond. Speaker wire 18-22AWG and SPT-1 Electric wire
• Round cable Stripper: by rotating 1-3 times at counterclockwise, and then open the jaw and remove the outer jacket. Available for following cables:
• Round cable: Tough insulation 12-14-16 AWG cable, SPT-2 electric wire.
• Assorted solid modular wire: UTP, STP, Data Communication wire and Network cable.
• Multi-Conductor cable: Insulation O.D. 3.2mm to 9.5mm (1/8"-3/8")
• Automotive/Heavy-duty wire max. 8 AWG.

Dimension
