Tohnichi - Ratchet Head Type Adjustable Torque Wrench with Metal Handle (1∼5-0.05Nm) - QL5N-MH
SKU
QL5N-MH
Out of stock
₹ 14,160.00
(Inc. GST)
Overview
Features
- Torque setting is easy to adjust by knob and scale
- Large adjusting knob designed to enhance usability in torque setting by oily hands.
- Accuracy +/-3% of indicated value
- Basic adjustable click style with knurled metal handle
Specifications
| Accuracy ± 3% | |||
| S.L Model | QL5N-MH | ||
| Torque Range [N • m] |
MIN ∼ MAX | 1∼5 | |
| Grad | 0.05 | ||

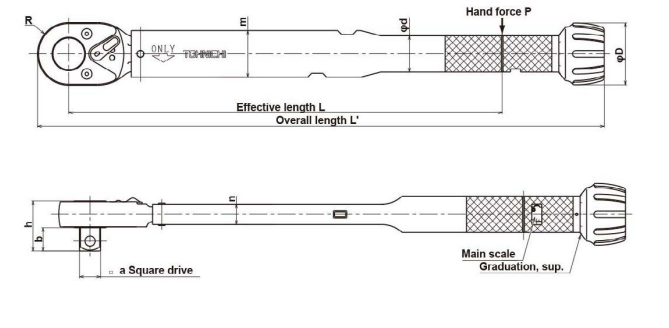

| Dimension [MM] | Effective Length | L | 100 |
| Overall Length | L | 160 | |
| SQ. Drive | a | 6.35 | |
| b | 7.5 | ||
| Head | R | 11.5 | |
| h | 17.5 | ||
| Body | m | 19 | |
| n | 9.2 | ||
| d | 15 | ||
| D | 25.5 | ||
| Weight (kg) | 0.16 | ||
