Tohnichi - Ratchet Head Type Adjustable Torque Wrench with Metal Handle ( 2∼10 - 0.1Nm) - QL10N-MH
SKU
QL10N-MH
In stock
₹ 14,750.00
(Inc. GST)
Overview
Product features
- Basic adjustable click style with knurled metal handle
- Torque value easily set with external scale and knob
- Ideal for oily working conditions
- Torque setting is easy to adjust by knob and scale.
- For CW tightening only.
- Large adjusting knob designed to enhance usability in torque setting by oily hands.
- Accuracy +/-3% of indicated value
Specifications
| Accuracy ± 3% | |||
| S.I. Model | QL10N-MH | ||
| TORQUE RANGE | MIN～MAX | 2～10 | |
| [N•m] | GRAD | 0.1 | |
| Max Head Force [N] | 69 | ||

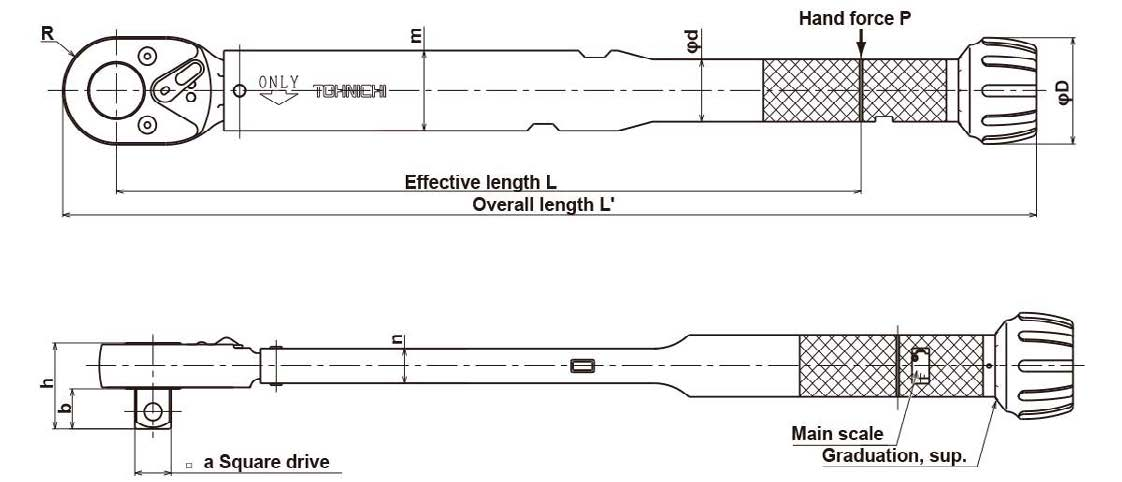

| Dimension [MM] | Effective Length | L | 135 |
| Overall Length | L | 195 | |
| SQ, Drive | a | 6.35 | |
| b | 7.5 | ||
| Head | R | 11.5 | |
| h | 17.5 | ||
| Body | m | 19 | |
| n | 9.2 | ||
| d | 15 | ||
| D | 25.5 | ||
| Weight (kg) | 0.19 | ||
