Tohnichi - Dial Indicating Torque Wrench (0.3 ~ 3-0.5Nm) - DB3N4-S
SKU
DB3N4-S
In stock
₹ 18,000.00
(Inc. GST)
Overview
Features
-
Wide range and high accuracy dial indicating torque wrench. Ideal for torque quality inspections
-
Accuracy +/-3% of reading
-
Easy to read dial face has a follower hand memory pointer that stays on peak torque for convenient reference
-
Use for tightening purposes by simply rotating the dial to the desired torque. Completed tightening is achieved when the pointer indicates “0”.
-
DB is not length-dependent. Therefore, accuracy is consistent regardless of where the hand is placed during the operation.
-
The dial indicator has a full-surround protective cover to prevent damage to external objects
Specification
| Accuracy ±3% | |||
| S.I. Model | DB3N4-S | ||
| Torque Range [N・M] | Min～Max | 0.3 ~ 3 | |
| Grad | 0.05 | ||
| Max. Hand Force [N] | 17.6 | ||

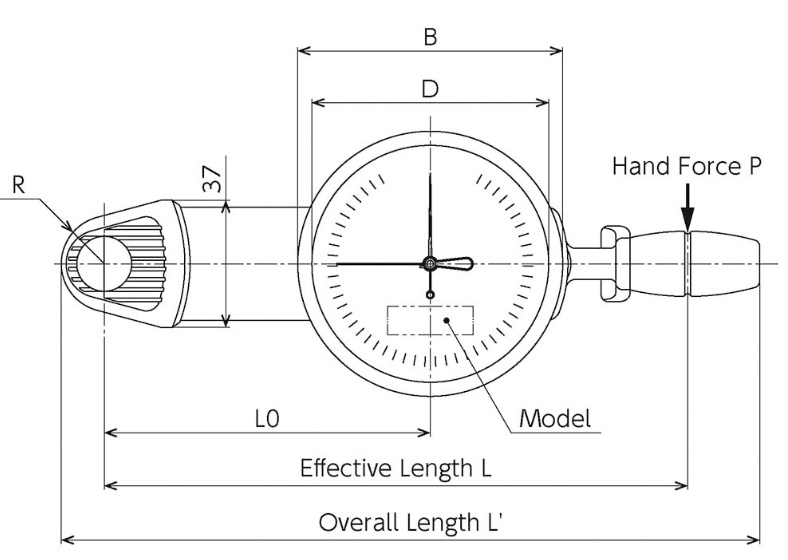

| Dimension [mm] | Effective Length | L | 170 mm |
| Overall Length | L' | 205 mm | |
| Sq. Drive | a | 6.35 mm | |
| b | 7.5 mm | ||
| Head | e | 14 mm | |
| h | 34 mm | ||
| R | 14 mm | ||
| Body | d | 19 | |
| L0 | 95 | ||
| Weight [Kg] | 0.4 | ||
