Mitutoyo - IP67 Absolute Coolant-Proof Digimatic Caliper 290mm - 500-703-20

SKU

500-703-20

In stock

₹ 20,680.00 (Inc. GST)

Overview

ABS coolant-proof caliper with dust/water protection conforming to IP67 Level. Can be used in workshop conditions exposed to coolant, water, dust or oil. 100% air-leak test ensures every caliper conforms to IP67.
Dust/Water protection level: IP67
Display readings increased 22% for improved visibility.
Easy removal of battery cap
Incorporates Mitutoyo's ABSOLUTE measurement system. No need to reset the origin
The automatic power-on/off function shuts down the LCD after 20 minutes of inactivity, but the ABS scale origin is unaffected. Power is restored to the display when the slider is moved
Position detection method: ABSOLUTE electromagnetic induction linear encoder

Order No	Range	Accuracy	Mass	Measurement data output port	Thumbroller
500-703-20	0 - 200mm	±0.02mm	198g	—	✔

ABS coolant-proof caliper with dust/water protection conforming to IP67 Level. Can be used in workshop conditions exposed to coolant, water, dust or oil. 100% air-leak test ensures every caliper conforms to IP67.
Dust/Water protection level: IP67
Display readings increased 22% for improved visibility.
Easy removal of battery cap
Incorporates Mitutoyo's ABSOLUTE measurement system. No need to reset the origin
The automatic power-on/off function shuts down the LCD after 20 minutes of inactivity, but the ABS scale origin is unaffected. Power is restored to the display when the slider is moved
Position detection method: ABSOLUTE electromagnetic induction linear encoder

Order No	Range	Accuracy	Mass	Measurement data output port	Thumbroller
500-703-20	0 - 200mm	±0.02mm	198g	—	✔

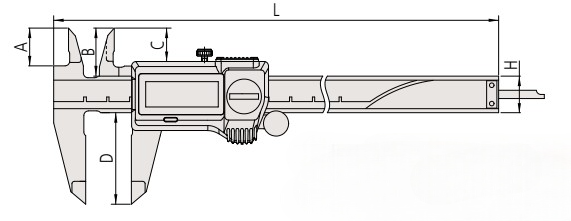

Range (mm)	A	B	C	D	H	L
0-200	20	24.5	18.1	50	16	290
