Lutron - Digital Force Gauge - FG-5000A

Descriptions :

Lutron FG-5000A Force Gauge with Measurement Range: Lutron Force Gauges 5 Kg is a high-quality Force Gauges. All Lutron FG-5000A Force Gauge Force Measuring Range: 5 Kg is manufactured using quality assured material and advanced techniques which make them up to the mark in this highly challenging area. The materials used for the manufacture of Lutron FG-5000A Force Gauge Force Measuring Range: 5 kg, is obtained from the most reputable and official vendors of Force Gauges, selected after comprehensive market surveys. Thus, Lutron products are widely known for their high quality in the industry.

Features of Lutron FG-5000A Force Gauge.

• Tension & compression capability.
•  5000 g, wide capacity, high resolution, high accuracy, high repeatability.
•  3 kind display unit, g/oz/Newton.
•  Separate sensor.
•  Peak hold ( Max. load ) measurement.
•  Zero buttons can operate both for normal & ” peak hold ” operation.
•  Full capacity zero (tare) capability.
•  Fast/Slow response time.
•  Positive or reverse display direction.
•  Handheld & stand mounting.
•  Microprocessor circuit & exclusive load cell transducer.
•  Overload protection.
•  RS-232 computer interface.

Specifiactions

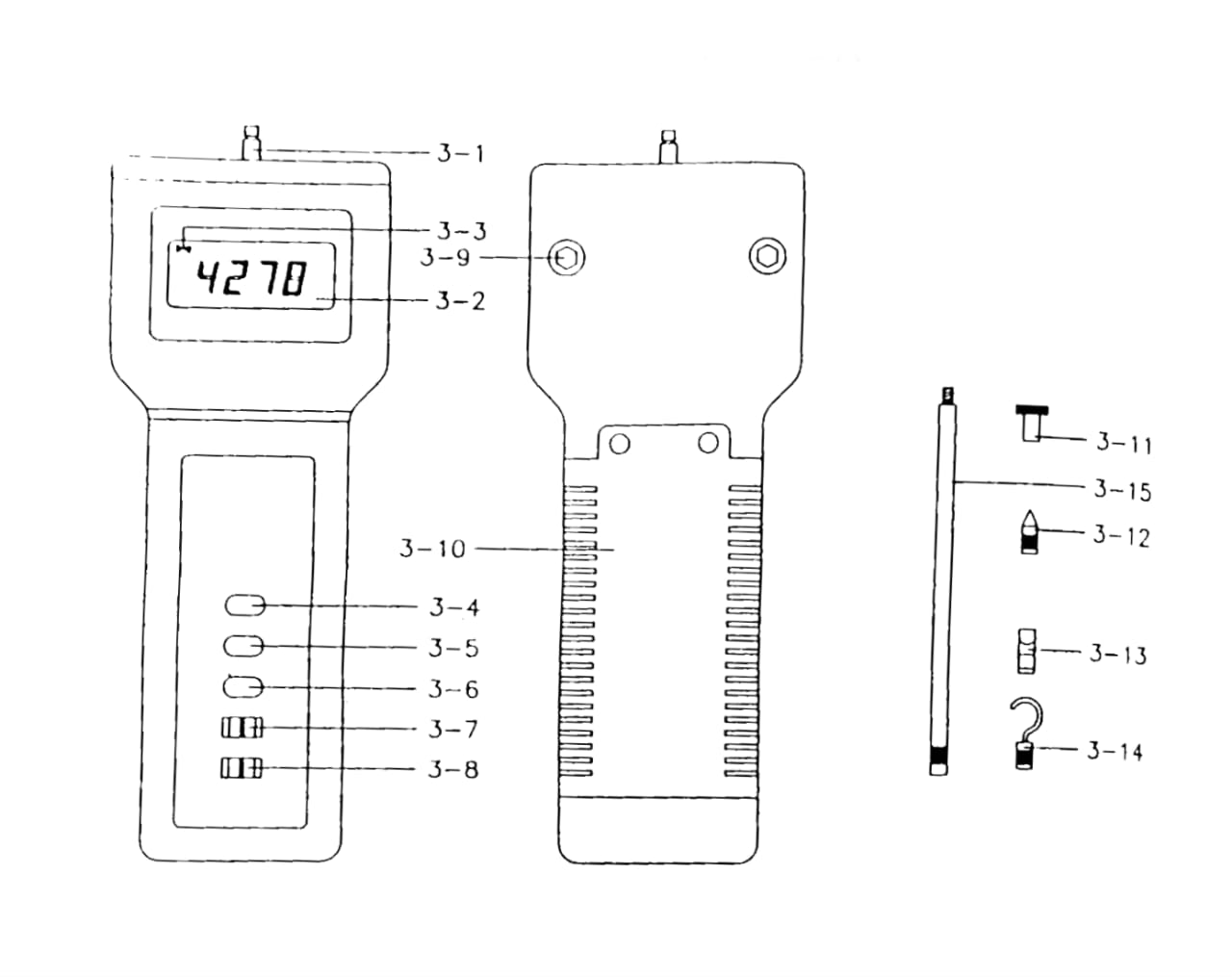

Panel Descriptions :

• 3-1 Universal Sensing Head
• 3-2 LCD Display
• 3-3 Fast Indicator
• 3-4 FAST/SLOW Button
• 3-5 LCD Reverse Display Button
• 3-6 Zero Button
• 3-7 g/oz/Newton Unit Switch
• 3-8 Power Off/On/Peak Hold  0 =-Off, 1= On
• 3-9 Mounting Holes/fixing Screws
• 3-10 Battery Cover/Compartment
• 3-11 Flate-head Adapter
• 3-12 Cone Adapter
• 3-13 Chisel Adapter
• 3-14 Hook Adapter
• 3-15 120 mm Extension Rod
