Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
Ground, very sharp cutting edges without bevel
Precisely shaped tips cut wires close to a surface from Ø 0.2 mm
Shear cut with controlled micro cutting edge offset for the most precise cutting of even the thinnest of wires and for a long service life
Joint with stainless steel rivet
Extremely smooth movement for minimum operator fatigue
With opening spring and opening limiter
Cutting edge hardness approx. 54 HRC
INOX tool steel
Technical attributes
Part No.
78 03 125
78 03 125 SB
EAN
4003773035381
4003773011972
Head
polished
polished
Handles
with multi-component handles
with multi-component grips
Weight
56 g
78 g
Dimensions
125 x 65 x 13 mm
125 x 84 x 7 mm
Standard
DIN ISO 9654
DIN ISO 9654
REACH compliant
does not contain SVHC
does not contain SVHC
RoHS compliant
not applicable
not applicable
Cutting capacities medium hard wire (diameter)
Ø 1.0 mm
Ø 1.0 mm
Cutting capacities soft wire (diameter)
Ø 0.2 - 1.6 mm
Ø 0.2 – 1.6 mm
Jaw length (B)
9 mm
9 mm
Jaw thickness (joint) (D)
7.5 mm
7.5 mm
Head width (A)
13.5 mm
13.5 mm
Also cut abutting, fine wires accurately
Extremely sharp cutting edges made of stainless, air-hardened INOX steel

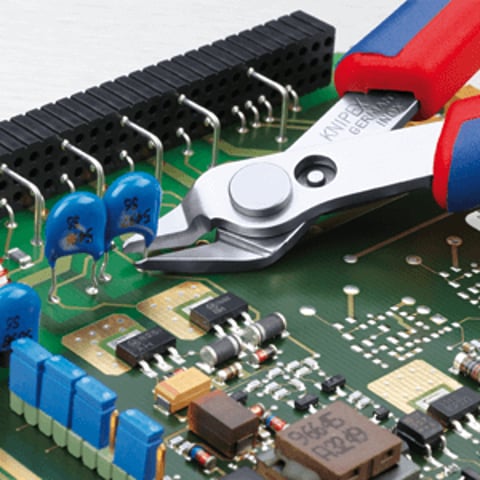

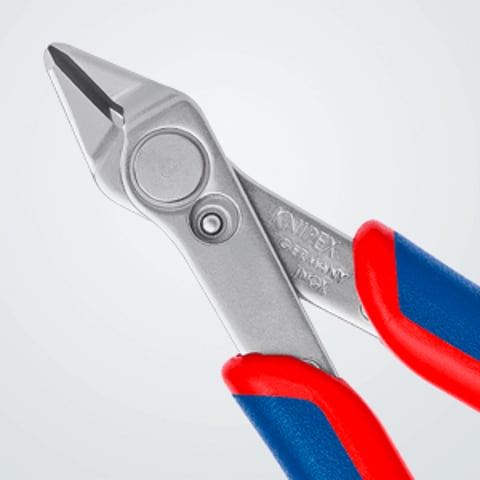

The Knipex Electronic Super Knips is made from surgical steel (INOX steel). The cutting edges are ground without bevel and hardened to approx. 54 HRC for flush cutting. Accurately cut fine wires, e.g. that are touching enclosures and components, thanks to precision tips.
Work involving dexterity: low weight and smooth operation
Great dexterity is needed when working on electronic components and in precision mechanics. Due to its frictionless handle spring, the Knipex Electronic Super Knips 78 03 125 is so smooth-running that energy can be metered out very precisely – with dexterity. Opening spring and opening restrictor further simplify work.
A special detail ensures an accurate cut and long service life
These precision pliers have been designed so that the user is able to concentrate completely on his work, also when working continuously, without the need to consider the tool.
Knipex Electronic Super Knips: high level of safety and quality
The Knipex Electronic Super Knips is used for the finest cutting work in electronics and precision mechanics. Radio technicians, industrial electricians, mechatronics engineers and electronics engineers, for example, place great value on optimal working results. The following arguments speak in favour of these precision pliers: their free movement, low weight, the excellent cutting precision and long tool life, among other things thanks to the micro cutting edge misalignment. These benefits are the visible results of decades of experience in toolmaking, constant product development and the commitment by Knipex towards the highest quality standards: from material selection and processing through to finishing.
