Knipex MultiCrimp – versatile when it comes to applications, consistent with regard to quality
The crimping pliers with several possible applications
Three interchangeable crimping dies in a quick die change magazine for non-insulated, open plug connectors (plug width 4.8 + 6.3 mm) from 0.5 to 6.0 mm²; insulated cable lugs, plug connectors and butt connectors from 0.5 to 6.0 mm², as well as insulated and non-insulated end sleeves from 0.25 to 6.0 mm².
The work results: as good as with professional crimping pliers with permanently mounted profiles
With the quick crimping die change without tools, the crimping dies are inserted in the front of the Knipex 97 33 01 MultiCrimp. The locking system developed for these pliers connects the dies to the tool with zero backlash and friction locking. This assembly principle produces professional crimping results. The Knipex 97 33 01 MultiCrimp therefore offers the range of services and quality of three pairs of professional pliers in a single tool. The crimping pressure is calibrated in the factory. The finely graduated integral lock with release mechanism triggers automatically on reaching the optimal crimping pressure: the right pressure at all times.
One tool, several applications, a great deal of comfort and constant precision
One pair of pliers with a magazine instead of three pairs of pliers. With this tool, the fitter is prepared for all standard crimping tasks. This reduces the weight of the toolbox and even renders it superfluous for some jobs. Working with just one tool is particularly useful, for example, when assembling several different cables in an area with large installations. Changing the crimping die takes just a few seconds. No tools are needed. The quick die change magazine is conveniently carried using the belt clip. You take everything with you.
Crimping pliers from Knipex: quality from universal through to special pliers
Knipex offers an extensive range of quality universal and special pliers for crimping. Those who use tools a lot and professionally every day expect a quality that permits simple and safe work and which lasts for many years of hard use.
We produce our tools from quality materials, machine them with great precision on up-to-date machinery, and harden them carefully using repeated heat treatment.

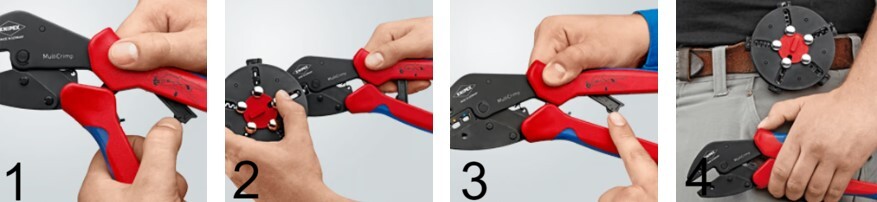

Switching position: fold the service lever out for parallel jaw position.
Crimping die change: release magazine position, remove crimping die in the pliers.
Fold the service lever in and push the pliers into place– ready for use again.
