KNIPEX 86 01 300 Pliers Wrench Pliers and a wrench in a single tool with non-slip plastic coating black atramentized 300 mm

•  Replaces a full set of inch and metric open end wrenches up to 2 1/2" (68 mm)
•  Smooth jaws for damage free installation of plated fittings - working directly on chrome
•  Adjustable tightening tool
•  Excellent for gripping, holding, pressing and bending applications
•  Zero backlash jaw surface pressure prevents damage to edges of sensitive components
•  24 adjustment positions at the touch of a button directly on the workpiece
•  Laser-etched scale allows the wrench opening to be set before gripping onto workpiece - metric and inch markings
•  Parallel jaws allow infinitely variable gripping of all widths to the specified maximum size
•  Reliable catching of the hinge bolt: no unintentional shifting
•  Chrome vanadium electric steel; forged, oil-hardened
•  Lever transmission greater than 10-1 for strong gripping power
•  The action of the jaws allows bolted connections to be tightened and released quickly using the ratchet principle

Technical attributes

KNIPEX pliers wrench 86 01 300, black atramentised: pliers and wrench in one, 300 mm in length

Now even better: KNIPEX pliers wrench with a length of 300 mm – grips widths across flats of up to a diameter of 68 millimetres (2 1/2")

The KNIPEX pliers wrench, combining pliers and a wrench, is a real all-rounder and a vital part of any tool case. It replaces an entire set of wrenches, both metric and imperial. The new model with a length of 300 mm weighs around 80 g less than the previous model. Continuous gripping of widths across flats up to 68 mm (maximum 2 1/2"). Two practical laser-cut scales help to adjust the pliers wrench to the required width across flats (front metric, rear imperial) in advance. The gripping jaws can be adjusted quickly, reliably and conveniently using a push button. Thanks to smooth, parallel jaws, screw connections with sensitive surfaces, such as fittings, can also be screwed gently into place – all without any damage. In addition, the pliers wrench does not have to be removed when loosening or tightening nuts: The action of the gripping jaws permits screwing according to the ratchet principle.

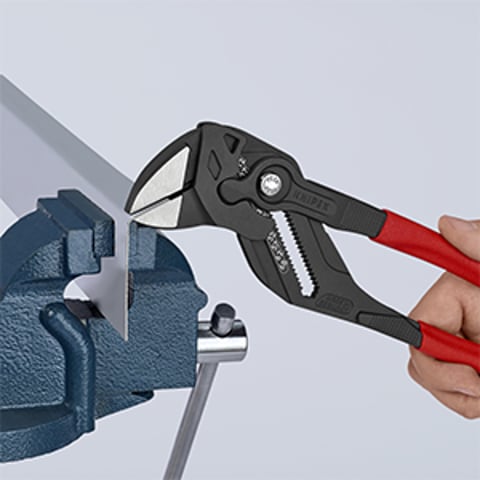

Also for gripping, pressing or bending

This proven tool can also serve as a mobile vice. Its high transmission ratio of approximately 1:10 enables an enormous increase in manual force for safely holding, gripping, pressing or bending workpieces. As an alternative to adjustment using the push button on the workpiece, the desired width across flats can be pre-adjusted in advance using the scale.

Useful as pliers and as a complete set of ratchet wrenches

The pliers wrenches from KNIPEX combine the functions of gripping pliers and wrenches in a single tool. Bolts, nuts and fittings of all widths across flats (metric and imperial) up to a maximum of 68 mm / 2 1/2" can now be tightened and loosened quickly and damage-free, other workpieces can be held, pressed or bent. A special advantage of the pliers wrench is the ratchet principle: This means that you don't have to remove it from the workpiece and reposition it again as with a wrench or adjustable wrench.

Datasheet (link)

8601300_en.pdf (knipex.net)
