Durable, load-optimised design with backlash-free box joint
High, slim sleeves for fine and comfortable gripping between thumb and index finger
Less physical effort due to very high transmission ratio
Load-optimised for a more direct feel when working
Low-friction double spring for gentle and even opening
The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools
Cutters additionally laser hardened, cutter hardness at least 62 HRC
Pointed head, without bevel
Technical attributes
Article No
77 42 130
EAN
4003773018773
Head
mirror polished
Handles
with multi-component grips
Weight
81 g
Dimensions
130 x 61 x 18 mm
Standard
DIN ISO 9654
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Cutting capacities medium hard wire (diameter)
Ø 1.3 mm
Jaw length (B)
16.2 mm
Jaw thickness (joint) (D)
8.5 mm
Head width (A)
13 mm
Precise cutting of fine wires and cables – even soft wires up to Ø1.6 mm

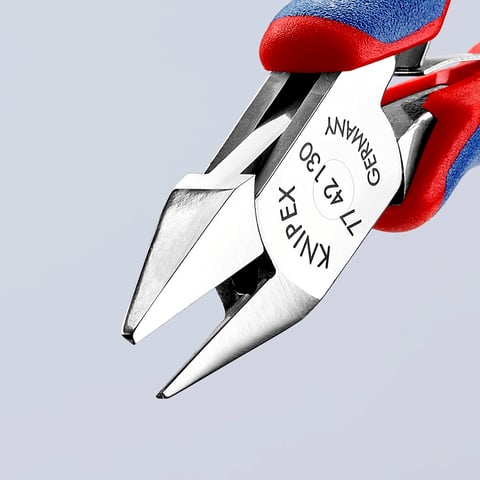

Narrow head, no-bevel cutting edge. Flush cutting also possible

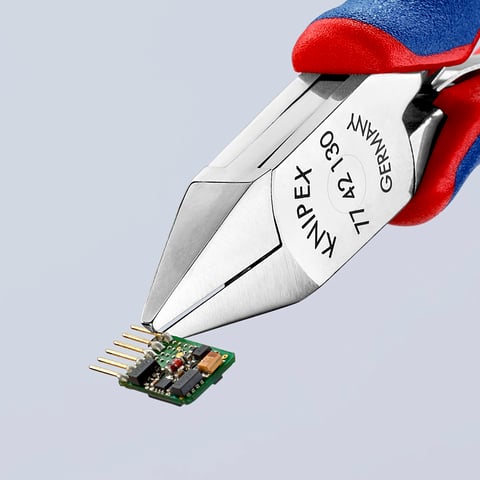

Unlike a diagonal cutter for domestic installations, electronics diagonal cutter 77 42 130 is a real precision tool. With a length of 130 mm and weighing 122 g, it is extremely compact and lightweight, making it ideal for confined spaces, e.g. often found in PCBs or precision equipment. Cutting edge hardness approx. 57 HRC it cuts soft wires up to Ø1.6 mm. The short pliers head offers strong leverage. This makes it perfect for power delivery on the cutting edges and controlling manual force. Due to its design, the electronics diagonal cutter 77 42 130 is only suitable for soft and medium-hard wires. As the cutting edges are not bevelled, flush cutting is possible.
Zero-backlash box joint for high cutting quality and service life
The Knipex 77 42 130 electronics diagonal cutter has a box joint. The inside of both pliers handles is guided. This prevents tilting. Rivets only undergo shearing stress. Result: higher-quality cutting operations, long service life. The tool is oil-hardened, while the cutting edges are induction-hardened to approx. 57 HRC.
High Knipex quality standards and corrosion protection
The Knipex 77 42 130 electronics diagonal cutter is forged and multistage oil-hardened. The high-grade workmanship meets the requirements for electronics and precision equipment. Precision, function and reliability are the key concerns. The meticulously crafted pliers are ideally suited to sensitive electronic environments, e.g. for work on PCBs.
Electronics diagonal cutters from Knipex – for electronics & precision equipment
Knipex offers a comprehensive range of box joint electronics diagonal cutters for applications in electronics and precision equipment. They are characterised by high precision and functionality – plus the proverbial Knipex durability. Professionals who use tools a lot every day expect a quality that enables them to work easily and safely and that can withstand many years of tough service. Box joint Knipex electronics diagonal cutter are forged from special quality special tool steel and are carefully processed and gently heat-treated.
