KNIPEX 74 02 160 High Leverage Diagonal Cutter 160mm

•  For very tough, continuous use
•  High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
•  Precision cutting edges also induction-hardened (hardness approx. 64 HRC), for all wire types including piano wire

Technical attributes

High leverage diagonal cutters for hard constant use

Reliable helpers for professional users: tough and strong

Thanks to their high cutting capacity and indestructible strength, the Knipex 74 02 160 high leverage diagonal cutters are highly valued especially by craftsmen, and therefore in great demand These high leverage diagonal cutters are also often used in the motor trade, on the building site and in industry. They are also ideal as constant companion in mobile applications, because despite their compact size, they are still able to cut hard materials effortlessly. At just 160 mm long, the Knipex 74 02 160 fits in most work bags and in almost any toolbox.

Low weight, optimum ergonomics and geometry: a 20 % energy saving

Compared to conventional diagonal cutters of the same size, the Knipex 74 02 160 offers a much better ratio between the force required and cutting capacity. The geometry of the cutting edges, joint and the handles has been designed for efficiency. This tool is also the first choice for hard constant use, e.g. assembly work, because its ergonomic design makes work much easier for the user. Thanks to the hand-friendly shape of the handle, the benefits of using these high leverage diagonal cutters are plain to feel and see. The multi-component grips ensure added comfort. These high leverage diagonal cutters are extremely stable due to their robust design with forged joint axle, yet also very light, weighing just 209 g.

Precise cutting of medium-hard and hard wire as well as piano wire

One can see how good diagonal cutters are by the cut. Knipex high leverage diagonal cutters deliver best performance. In addition to the quality forged metal parts made of high performance chrome vanadium tool steel, the most important quality criteria at Knipex include their precise machining. The sharpness and angle of the cutting edges on the Knipex 74 02 160 are designed for top performance. The excellent machining of these high leverage diagonal cutters makes sure that the material to be cut is always cut cleanly

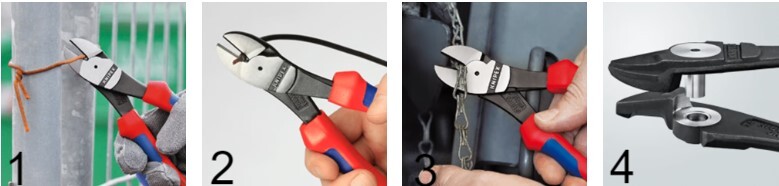

1. Ideal for cutting soft to hard wire, and even piano wire.
2. The high leverage diagonal cutters are ideal for cutting CU or AL conductors.
3. The high leverage diagonal cutters also cut chains with a 20 % energy saving compared to diagonal cutters of the same length.
4. With forged joint axle for the toughest, continuous demands.

Datasheet (link)

7402160_en.pdf (knipex.net)
