Eclatorq - 1/4" Square Drive Digital Quality - Control Torque Wrench 1.5~30Nm - QWK2-030BN
SKU
QWK2-030BN
In stock
₹ 25,016.00
(Inc. GST)
Overview
Features
- Quality inspection to confirm torque value of pre-tightened bolt.
- Using retightening method to detect slight movement of fastener.
- Tightening speed grade setting (effective in QC mode)
- Support 2 mode measurements:
- MI: QC mode
- M2: Torque measurement mode
- Digital torque value readout
- +/-1% or +/-2% for torque accuracy
- CW and CCW operation.
- Buzzer and LED indicator (warning signal): only available in QC Mode.
- Four Units Selectable (N-m, ft-lb, in-lb, kg-cm)
- 50 or 250 data memory for recall and joint torque auditing
- Auto power-off after about 15 minutes idle
- AA regular and rechargeable batteries are compatible

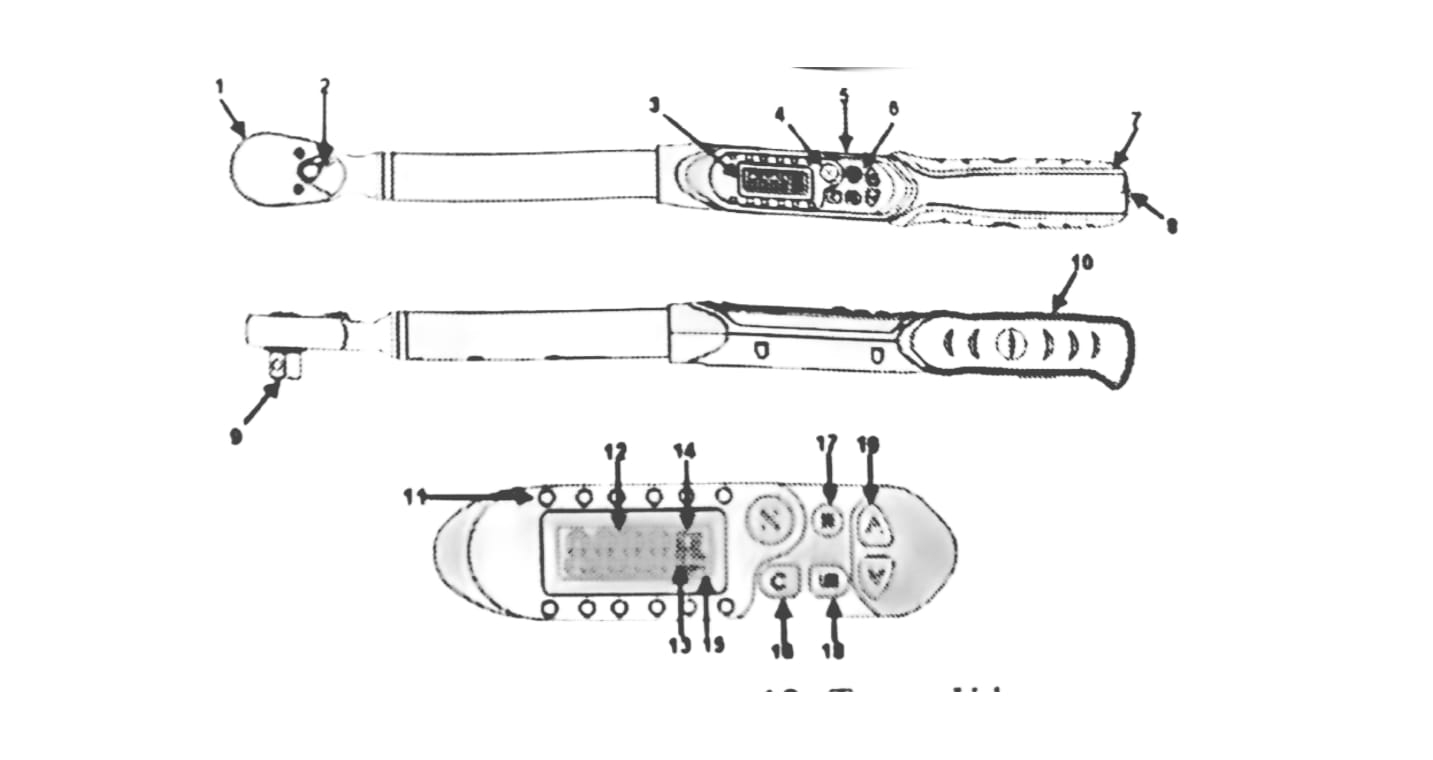

Names And Functions Of Parts
- Reversible Ratchet Head
- Direction Lever
- LCD Readout
- .Buzzer
- Communication Port
- Buttons
- Battery Compartment
- Battery Cover
- Ratchet Drive
- Anti-slip Handle
- LED Indicator
- Torque Value
- Mode number
- Units
- P(Peak Hold)/T(Track) Mode
- Power On/Clear Button
- Mode selection button
- Unit/Setting Button
- Up/Down Button
Specifications
| Model No. | Max Torque (N-m) |
Sqaure Drive (inches) |
Torque Measuring Range (N-m) |
Length |
| QWK2-030BN | 30 | 1/4 | 1.5~30 | 390 |
| Tiger Accuracy*1 |
CW: ±2% CCW: ±3 |
| Data memory size | 50 |
| PC Connectivity *2 | No |
| Operation Mode *3 | M1-QC mode ,M2-torque mode |
| Torque display (M2 mode) *4 | Peak hold/Track |
| Bright LED | 12 LEDs (2 Red + 10 Green) |
| Unit Selection | N-m, ft-lb, in-lb, kg-cm |
| Head Type | Lever Type Ratchet |
| Gear Teeth | 36 |
| Battery | AA x 2 |
| Operating Temperature | -10℃~60℃ |
| Storage Temperature | -20℃~70℃ |
| Humidity | Up to 90% non-condensing |
| Drop Test | 1 m |
| Vibration Test *5 | 10G |
| Environmental test *6 | Pass |
| Electromagnetic compatibility test *7 | Pass |
