Eclatorq - 1/2" Square Drive Digital Angle Torque Adaptor & Angle Meter 10~200Nm - TD4-200CN
Overview
Features
- Digital torque value readout.
- +-3% or 4% for porque accuracy
- CW and CCW operation
- Buzzer and LED indicator for the 9 pre-settable target torques
- Four Units Selectable (N-m, ft-lb, in-lb, kg-cm)
- 50 data memory for recall and joont
- Auto power off after about 2 mamtes ide CR2032 Lithium Manganese Dioxide Battery
Features
- Digital torque value readout.
- +-3% or 4% for porque accuracy
- CW and CCW operation
- Buzzer and LED indicator for the 9 pre-settable target torques
- Four Units Selectable (N-m, ft-lb, in-lb, kg-cm)
- 50 data memory for recall and joont
- Auto power off after about 2 mamtes ide CR2032 Lithium Manganese Dioxide Battery

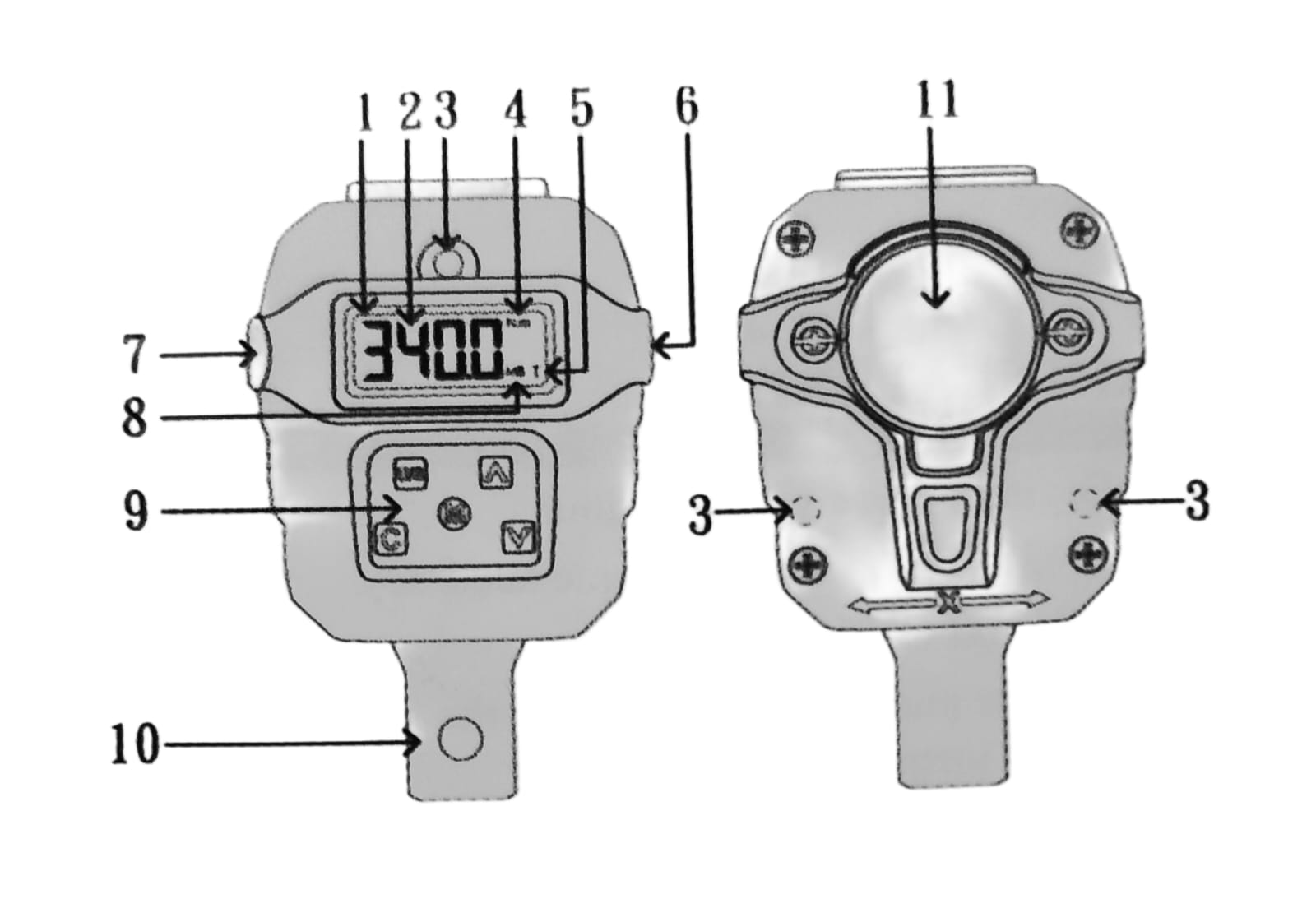

Names And Funtions Of parts
- LCD Readout
- Torque Value
- LED Indicator
- Units
- Peak/Track Mode
- Buzzer
- Communication Port
- Memory Number
- Buttons
- Adaptor
- Battery cover
Specifications
| Model No |
Resolution (N-m) |
Square Drive (inches) |
Torque Measuring Range (N-m) |
Length (mm) |
| TD4-200CN |
0.1 |
1/2 |
10~200 |
75 |
| Torque Accuracy *1 |
CN |
| CW: ±3%, CCW: ±4% |
| Data memory size |
50 |
| PC Connectivity * |
No |
| Pre-setting No. |
9 sets |
| LED Indicator |
3 LEDs (Red) |
| Operating Mode |
Peak Hold/Track |
| Unit Selection |
N-m, ft-lb, in-lb, kg-cm |
| Button |
5 |
| Battery *3 |
CR2032 * 1 |
| Operating Temperature |
-10℃~60℃ |
| Storage Temperature |
-20℃~70℃ |
| Humidity |
Up to 90% non-condensing |
| Drop Test |
1 m |
| Vibration Test *4 |
10G |
| Environmental Test *5 |
Pass |
| Electromagnetic compatibility test *6 |
Pass |
More Information
| SKU |
TD4-200CN |
| Product Model No |
TD4-200CN |
| brand |
Eclatorq |
